For copper pipe connections, compression fittings provide a practical way to connect tubing without soldering or working with an open flame. A Copper Compression Union combines a body, ferrule, and nut, and the seal is created when the nut is turned with a wrench. Because of that practical design, the Compression Fitting 3/4 and 3/4 Copper Compression Fitting are often chosen by trade installers and hands-on homeowners.

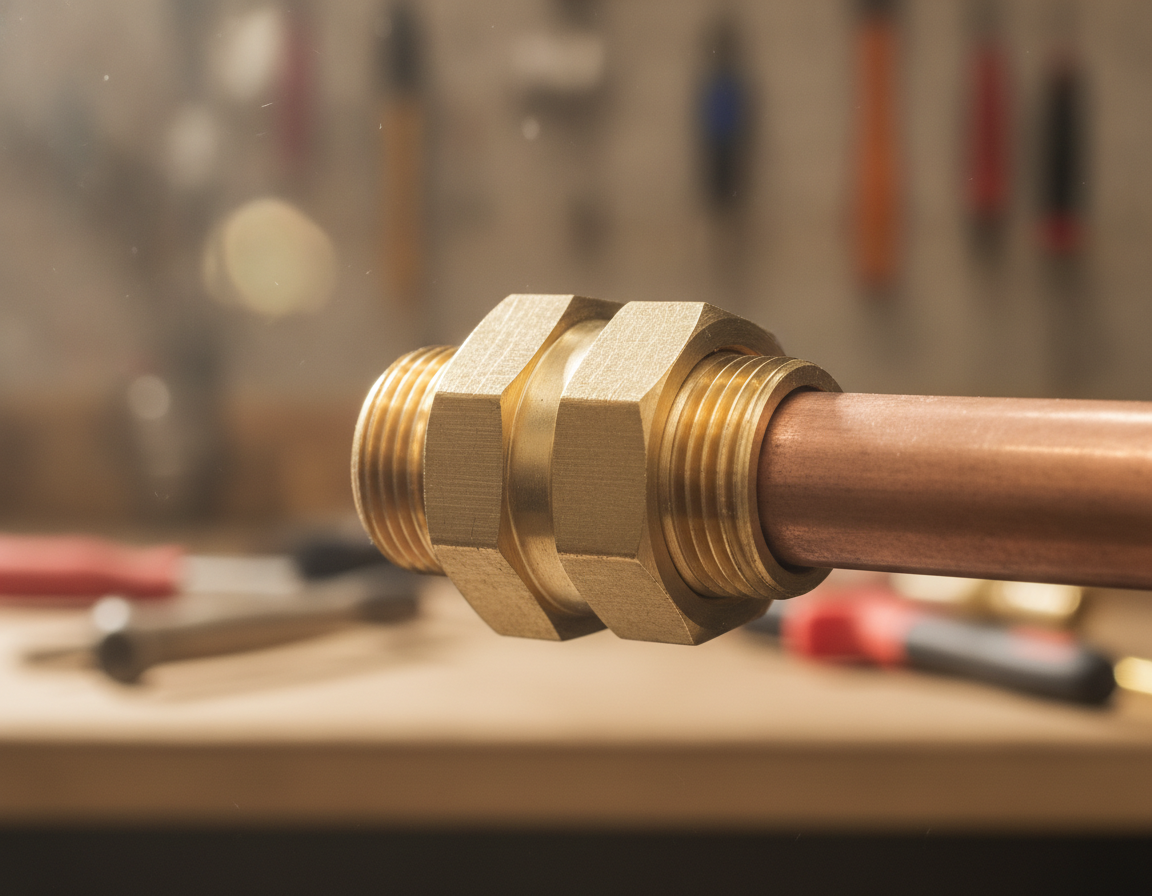

3/4 Inch Compression Fitting
These unions are practical for residential and commercial projects, including supply piping and instrumentation runs. Installation Parts Supply frequently carries 3/4 Compression Fitting Copper and 3 4 Compression Fittings in various materials like brass, copper, and stainless. As the nut tightens, the ferrule compresses between the tapered body and nut, gripping tubing such as annealed copper or compatible thermoplastic tube.
Important Takeaways
- Copper Compression Union connects copper pipe without soldering.
- Compression Fitting 3/4 and 3/4 Copper Compression Fitting are popular sizes.
- 3/4 Compression Fitting Copper and 3 4 Compression Fittings are commonly stocked through Installation Parts Supply.
- Brass bodies and ferrules supply durability, strength, and corrosion resistance.
- Tightening the nut with a wrench presses the ferrule and forms a leak-tight seal.
Understanding Copper Compression Union: Design And Components
A Copper Compression Union is a three-piece fitting that couples tubing without solder. It is widely used in plumbing, HVAC, refrigeration, gas distribution, and instrumentation. This is because it creates a tight, compressive seal. The 3 4 Copper Compression Union is common in residential and light-commercial installations.
What A Copper Compression Union Is And Where It’s Used
A compression union connects two pipes by compressing a ring around the tube as the nut tightens. It is useful for quick repairs, service loops, and tight spaces where an open flame is impractical. The 3/4 Copper Compression Fitting is useful for common mains, branch lines, and appliance feeds without brazing.
Body, Ferrule Olive, And Nut Components
The union body creates the threaded channel that accepts the nut. The ferrule, often called an olive, compresses and seals against the pipe and body when the nut is drawn up. The nut threads onto the body and provides the compression force. Correct ferrule seating is essential for a leak-free joint and dependable field serviceability.
Copper Union Materials: Copper, Brass, Stainless Steel, And Plastics
Brass unions deliver ductility and corrosion resistance, making them compatible with copper pipe for water and gas. Stainless steel adds additional strength for high-pressure, high-temperature, or demanding service. Copper-to-copper unions provide uniform thermal expansion and fit standard tubing sizes. Plastic ferrules and fittings, like acetal or nylon, show up in low-pressure domestic systems where chemical resistance and nonmetallic connections are desired.
Why Matching Copper Unions Lower Galvanic Corrosion Risk
Matching metals lower galvanic corrosion risk because similar alloys have closer electrochemical behavior. A copper-to-copper union, or a brass body paired with copper pipe, limits active corrosion at the connection. Avoid pairing copper with carbon steel or dissimilar metals without dielectric breaks when using a 3/4 Compression Fitting Copper to ensure long-term durability.
Why Use Compression Fittings On Copper Pipes
For copper pipe work, compression fittings provide a fast, safe alternative to soldered joints. They remove the need for open flame work, which limits fire risk around insulation, drywall, framing, or older structures. A Compression Fitting 3/4 can form a dependable seal without heat, making it ideal for retrofits and tight locations.
Installation is usually consistent across many fitting brands. First place the nut onto the tube, then add the ferrule. Next, push the tube fully into the body and hand-tighten before applying the final wrench turns. A 3/4 Compression Fitting or 3 4 Compression Fitting can be fitted quickly in tight crawl spaces and behind cabinets where a torch would be impractical.
Serviceability is a major strength of compression unions. Many plumbers and technicians like 3 4 Compression Fittings because the assembly can often be loosened or repositioned without cutting the pipe. Although ferrules often need replacement after disassembly, the overall joint may remain serviceable, saving time during repairs, changes, or modifications.
Compression fittings can be used in many systems beyond ordinary household plumbing. They are used in gas distribution, HVAC refrigeration lines, and instrumentation where leak integrity and ease of maintenance are critical. When a compact, no-flame connection is needed, a Compression Fitting 3/4 or 3/4 Compression Fitting can be a practical choice.
| Comparison Point | Compression Fitting | Solder Joint |
|---|---|---|
| Heat required | No open flame | Yes |
| Install speed | Fast | Slower |
| Future disassembly | Easy to disassemble | Fixed joint |
| Suitability in confined spaces | High | Low |
| Usual applications | Repairs, gas, HVAC, and serviceable lines | Domestic water, long-term sealed joints |
How To Choose The Right Size And Material
A reliable plumbing joint requires the correct size and material selection. Before making a purchase, check the pipe’s outside diameter and the fitting’s designation. Misinterpretation of terms like 3/4 Compression Fitting can lead to leaks and costly repairs.
It is essential to distinguish between nominal size and outside diameter OD when selecting products. Search for SKU labels such as 3 4 Copper Compression Union or 3/4 Copper Compression Fitting. Correct sizing allows proper ferrule seating on the copper tube.
Useful SKU keywords for buying
Retail listings and manufacturer catalogs often list parts under various names. Choose listings with accurate labeling and standard references. Common search terms include Compression Fitting 3/4 and 3 4 Copper Compression Union. Make sure the product description aligns with your pipe OD or nominal sizing requirement.
Material selection
Brass is often chosen for copper pipe systems because it provides ductility and corrosion resistance. A 3/4 Union Brass or a 3 4 Union Brass meets the needs of most residential and light-commercial applications.
Copper unions are useful when matching metals, controlling thermal expansion, and reducing galvanic activity. A 3/4 Compression Fitting Copper offers a homogeneous connection suitable for refrigeration and traditional plumbing.
Stainless steel is recommended for applications requiring higher pressure or resistance to aggressive chemicals. It delivers greater strength and chemical resistance compared to brass and copper.
When plastic fittings are acceptable
Acetal or nylon compression fittings are suitable for low-pressure domestic water lines and where non-conductivity is necessary. However, they have restrictions, including lower pressure ratings, lower temperature tolerance, and sensitivity to some chemicals.
Comparing common coupling types
| Material | Common Use | Relative Strength | Material Notes |
|---|---|---|---|
| Brass 3/4 Union Brass | Water lines, gas service, and general plumbing | Good | Cost-effective, compatible with copper |
| 3/4 Compression Fitting Copper | Copper systems and refrigeration lines | Reliable for standard service | Limits galvanic corrosion, matches copper tubing |
| Stainless steel fittings | High-pressure, high-temperature, and corrosive-fluid service | Strong | Useful where strength and chemical resistance matter |
| Plastic acetal/nylon | Low-pressure household water lines | Moderate at best | Useful where non-conductivity matters, but ratings are lower |
Sizing tip
When you see names such as 3 4 Brass Compression Coupling or 3/4 Inch Compression Fitting, confirm whether the listing refers to outside diameter or nominal pipe size. Ensure compatibility with manufacturer specifications and approvals from trusted brands like Dixon, if applicable.
How To Install A Leak-Free Compression Union
Start with copper tubing that is clean. Use a pipe cutter to make a square cut. Remove any burrs with a deburring tool or fine sandpaper. A smooth, square tube end is important for preventing ferrule damage and creating a reliable seal with 3/4 Compression Fittings.
Put the components together in the proper order. Slide the compression nut onto the pipe with the threads facing outward, then install the ferrule. Push the pipe fully into the union body until it bottoms out. This step reduces gaps that can cause leaks when using a 3 4 Brass Compression Coupling or 3/4 Compression Fitting Copper.
Hand-tighten the nut first to align parts. Then use two wrenches, with one holding the fitting body steady and the other turning the nut. Follow the manufacturer’s recommended number of wrench turns after finger-tight. Over-tightening can deform the ferrule or crush the copper tube, which shortens the life of a 3/4 Copper Compression Fitting.
Avoid reusing ferrules. Use a new ferrule and nut for each new compression joint. Do not install compression joints where constant vibration or repeated movement occurs. These conditions can loosen fittings such as 3/4 Compression Fittings and 3 4 Brass Compression Coupling over time.
Check the pressure and temperature rating for the fitting you choose. Before installation, review the product datasheet or packaging. After assembly, restore pressure slowly and inspect the joint for leaks. If minor weeping appears, tighten incrementally. Persistent leaks require disassembly and inspection of the ferrule, nut, and pipe end to confirm correct seating.
Maintaining, Replacing, And Troubleshooting Compression Unions
Begin by shutting off the water supply and relieving pressure. Use two wrenches, one to hold the fitting body steady and the other to turn the compression nut counter-clockwise. Apply penetrating oil to a seized nut and let it soak before attempting removal.
Removing an existing compression union safely
Hold the pipe steady with one wrench and turn the nut with another. After the nut loosens, slide the nut and ferrule away from the tube end. If the union is old or corroded, loosen it slowly to avoid sudden leaks or pipe damage.
When to replace ferrule and nut instead of the full union
Replace the ferrule and nut when the fitting body looks sound and the sleeve shows wear or deformation. Replace the full union if the body threads are corroded, leaks continue after new ferrules are installed, or the assembly no longer meets pressure or material requirements.
Failure signs: weeping, corrosion, and deformed ferrules
Inspect for weeping around the nut and ferrule, green or white corrosion on copper or brass, and ferrules that are crushed, split, or distorted. Vibration may gradually loosen compression unions and cause slow leaks over time.
How to remove a stuck ferrule without damaging copper pipe
Carefully score the ferrule lengthwise with a thin rotary blade or hacksaw, then pry it open and remove it. Use a ferrule puller if available. If the tube is nicked, flattened, or damaged, cut the end square again, deburr it, smooth it, and reinstall with a new ferrule and nut.
Compression union versus soldered joints for long-term service life
Under static conditions, soldered joints usually provide a more permanent seal and may last longer. Compression unions are easier to service and require no flame, making them useful for repairs and confined spaces. In systems exposed to vibration or long-term mechanical stress, soldered joints tend to outperform compression fittings.
| Part | Serviceability | Expected Service Life | Best Use |
|---|---|---|---|
| Brass 3 4 Compression Union | Can be disassembled; ferrule may need replacement after several cycles | Typically 5–15 years, depending on water quality and movement | Service work, confined spaces, and flame-free jobs |
| 3/4 brass union | Serviceable if the body remains in good condition | Typically 5–15 years | Accessible general plumbing repairs |
| 3/4 compression fitting assembly | Reusable short term; ferrule replacement recommended after repeated cycles | Material-dependent, commonly 7–20 years for brass | Fast no-solder repairs and installations |
| 3/4 inch compression fitting | Easy to install and remove; watch for damage when reusing ferrules | Varies by conditions and may shorten under movement | Home plumbing and retrofit repairs |
| 3/4 compression fittings compared with soldered joints | Soldered joints are permanent and not easily serviced | Frequently 20+ years if installed correctly | Long-term fixed runs and vibration-prone systems |
When sourcing spares, check manufacturers such as Mueller, Nibco, or Watts for compatible 3/4 Compression Fittings and 3/4 Inch Compression Fitting parts. Always verify material compatibility and pressure ratings before reinstalling any replacement ferrule or nut.
Conclusion
Copper compression unions deliver a practical solution for joining copper tubing without the need for soldering. The union’s body, ferrule, and nut produce a tight seal when properly sized and installed. That makes them useful where heat is impractical or where future serviceability matters.
When choosing materials, match the fitting to the application: brass or copper for potable systems and lower galvanic risk, stainless steel for harsh or high-stress service, and approved plastics where they are permitted. A 3/4 Compression Fitting or 3/4 Copper Compression Fitting can perform well when the pipe is cut square, the ferrule is seated properly, and tightening follows manufacturer guidance.
Maintenance is manageable: check for signs of weepage or corrosion, replace ferrules as needed, and avoid over-tightening to prolong the union’s life. For parts such as a 3 4 Copper Compression Union or 3 4 Union Brass, confirm availability and specifications through Installation Parts Supply. This helps ensure compatibility, proper sizing, and correct installation guidance.
